Processeur | Intel Core i3-i5-i7 de 12ᵉ génération (jusqu’à 35W, socket LGA)
|
Carte graphique | Intel® UHD Graphics 730/770 (architecture Xe)
|
RAM | 2 x SO-DIMM DDR5 4800 MHz, jusqu’à 64 Go (non-ECC, non-buffered)
|
Affichage | 1 x HDMI 2.1 (8K@60Hz), 2 x HDMI 2.0 (4K@60Hz), jusqu’à 3 écrans indépendants
|
Stockage | 2 x M.2 2280 Key M (PCIe x4 et SATA)
|
Ports USB | 8 x USB 3.2 (2 à l’avant, 6 à l’arrière)
|
Ports série | 1 x RS-232/422/485, 3 x RS-232 (DB9 en façade)
|
Réseau | 1 x LAN GbE (Intel® I219-LM), 2 x LAN 2.5GbE PoE (Intel® I226V, norme IEEE 802.3af, jusqu’à 30W total)
|
Audio | 1 x entrée micro, 1 x sortie ligne
|
Slots M.2 | 1 x Key E (Wi-Fi 6E – PCIe x2, USB) & 1 x Key B (4G/5G – PCIe x1, USB 3.2)
|
SIM | oui (slot support double SIM selon module LTE utilisé)
|
Sécurité | TPM 2.0 intégré
|
GPIO | 8 canaux (4 entrées, 4 sorties)
|
Alimentation | Entrée 24V DC, adaptateur externe 180W fourni
|
Température de fonctionnement | 0°C à 40°C avec flux d’air de 0,7 m/s
|

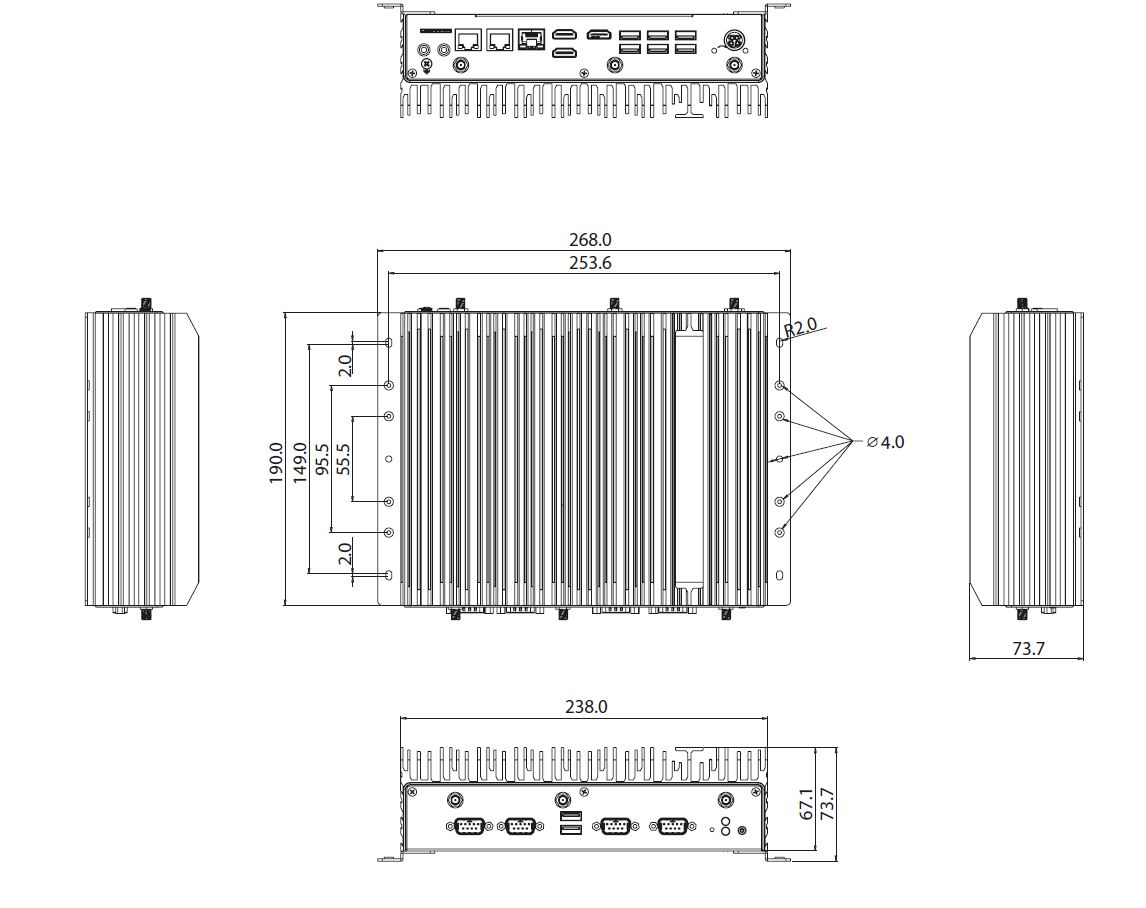

Dimensions | 238 mm (L) x 190 mm (P) x 67,1 mm (H)
|
Poids | 4,6 kg
|
Systèmes d’exploitation compatibles | Windows 10 et 11, Linux Kernel
|
Certifications | CE (EN55032/55035), FCC Classe A (Part 15B) |
Système d'exploitation |
Linux, Windows 10 IoT, Windows 11 |
Fonctionnalités |
4G LTE / GPS, Ethernet RJ45, HDMI, Port USB, Port série |
Processeur |
Intel i3, Intel i5, Intel i7 |
Montage |
A poser, Fixation murale |
Architecture |
Fanless |
Interface de communication |
4G LTE, Ethernet, GPIO, Série, USB |
Nombre de ports ethernet |
3 ports |
Nombre de ports séries |
4 |
Chassis |
PC Fanless |
SKU | NDiS B561 PoE |
Fabricant / Marque | Nexcom / NeXAIoT |
